Rendition DUIDs
A DUID is a descriptive tag that ties together the important rendition characteristics; for example, the height, width and frame rate of a video rendition.

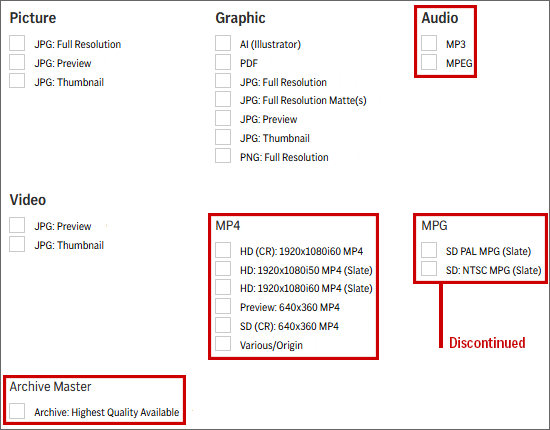

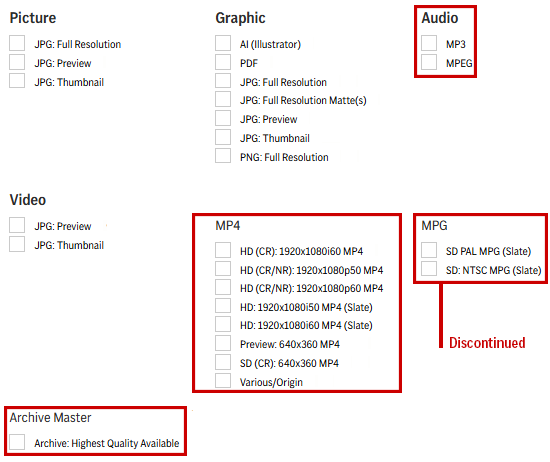

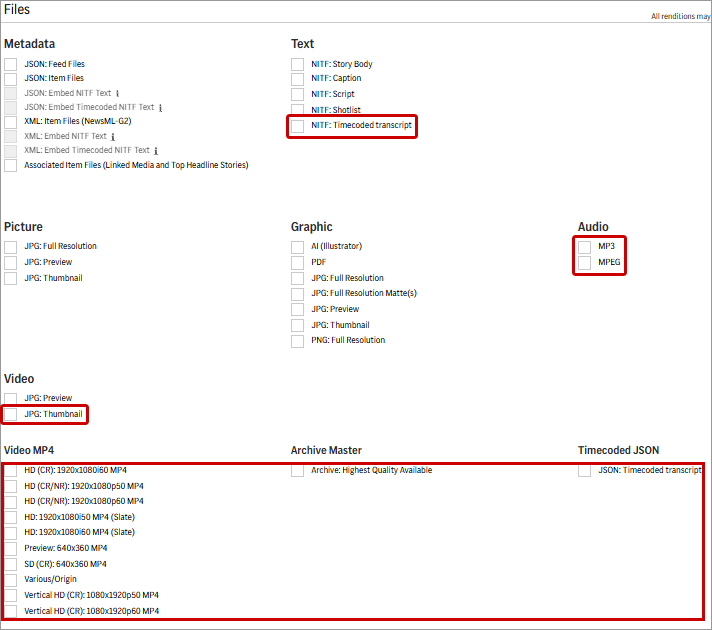

The rendition DUID tables below provide the specifications for the DUIDs of the available renditions for video and audio as well as the mapping to the Media Agent dashboard content download options on the Content Options tab of the Content Profile page:
|
|
|
|
All renditions may not be available for certain entitlements or content items. For more information, see Rendition availability. |
|
|
|
|
Note
Video rendition DUIDs
|
DUID |
Specifications |
Media Agent dashboard option |
|---|---|---|
|
Breaking News Newsroom Ready |
||
|
vid-360p-preview-bug |
Preview, 576x324 |
Preview: 640x360 MP4 |
|
vid-1080i-main-50-slate |
Main HD @50Hz, interlaced, 1920x1080 |
HD: 1920x1080i50 MP4 (Slate) |
|
vid-1080i-main-60-slate |
Main HD @60Hz, interlaced, 1920x1080 |
HD: 1920x1080i60 MP4 (Slate) |
|
vid-1080p-main-50 |
Main HD @50Hz, progressive, 1920x1080 |
HD (CR/NR): 1920x1080p50 MP4 |
|
vid-1080p-main-60 |
Main HD @60Hz, progressive, 1920x1080 |
HD (CR/NR): 1920x1080p60 MP4 |
|
Breaking News Consumer Ready |
||
|
vid-360p-preview-bug |
Preview, 576x324 |
Preview: 640x360 MP4 |
|
vid-360p-preview-50-online |
Preview, 640x360 |
Preview: 640x360 MP4 |
|
vid-360p-main-60 |
Main SD, progressive, 640x360 |
SD (CR): 640x360 MP4 |
|
vid-1080i-main-60 |
Main HD, interlaced, 1920x1080 |
HD (CR): 1920x1080i60 MP4 |
|
vid-1080p-main-50 |
Main HD @50Hz, progressive, 1920x1080 |
HD (CR/NR): 1920x1080p50 MP4 |
|
vid-1080p-main-60 |
Main HD @60Hz, progressive, 1920x1080 |
HD (CR/NR): 1920x1080p60 MP4 |
|
vid-1920p-main-50 |
Vertical Main HD @50Hz, progressive, 1080x1920 |
Vertical HD (CR): 1080x1920p50 MP4 |
|
vid-1920p-main-60 |
Vertical Main HD @60Hz, progressive, 1080x1920 |
Vertical HD (CR): 1080x1920p60 MP4 |
|
Archive Video |
||
|
vid-360p-preview-bug |
Preview, 576x324 |
Preview: 640x360 MP4 |
|
vid-1080i-physicalmain-60-10 |
Archive Main HD @60Hz, interlaced, 1920x1080 |
Archive: Highest Quality Available delivers the one Main available for download without transcoding |
|
vid-1080i-physicalmain-50-10 |
Archive and Live Choice Replay Main HD @50Hz, interlaced, 1920x1080 |
|
|
vid-1080i-physicalmain-60-slate |
Archive Main HD @60Hz, interlaced, 1920x1080 |
|
|
vid-1080i-physicalmain-50-slate |
Archive Main HD @50Hz, interlaced, 1920x1080 |
|
|
vid-720i-physicalmain-60-slate |
Archive Main SD @60Hz, interlaced, 720x480 (SD NTSC) |
|
|
vid-720i-physicalmain-50-slate |
Archive Main SD @50Hz, interlaced, 720x576 (SD PAL) |
|
|
vid-1920p-physicalmain-60-10 |
Vertical Archive Main HD @60Hz, progressive, 1080x1920 |
|
|
vid-1920p-physicalmain-50-10 |
Vertical Archive Main HD @50Hz, progressive, 1080x1920 |
|
|
Other |
||
|
vid-origin |
Original format of video for pass-through |
Various/Origin |
|
img-1080x1920 |
Vertical video thumbnail |
JPG: Thumbnail (under Video) |
|
txt-json-transcript |
Timecoded video transcript in the JSON format |
JSON: Timecoded transcript (under Timecoded JSON) |
|
txt-nitf-transcript |
Timecoded video transcript in the NITF format |
NITF: Timecoded transcript (under Text) |
Audio rendition DUIDs
|
DUID |
Specifications |
Media Agent Dashboard Option |
|
|---|---|---|---|
|
aud-mp3-128-main |
Main MPEG Audio, Layer 3, 128 kb/s, 44.1 kHz, 1 channel |
MP3 |
|
|
aud-mp2-128-main |
Main MPEG Audio, Layer 2, 128 kb/s, 44.1 kHz, 1 channel |
MPEG |
